Hot Mounting Presses (Hot Pressing Models)

Sagging of a sample during grinding/polishing can be prevented by mounting the sample in resin. The specimen is made easier to hold with the fingers during manual grinding/polishing and stable grinding/polishing conditions can be realized by setting the specimen in a holder for automatic grinding/polishing.
Hot Mounting is extremely advantageous, especially with small and irregularly shaped materials, and enables excellent specimen surfaces to be obtained.
A material can be mounted in resin in a short time by hydraulic pressing and heating by a temperature-controlled heater in the Handy press, Semi-automatic press or Motorized press model.
A hot mounting resin is used as the mounting resin.
The seal is opened for prevention measure of deposition of resin waste.
Adjust the hydraulic pressure for not over pressure.
Attached the heater cover newly.

Handy Press Model P-4210

Manual Hydraulic Press

Product Specifications

Power Supply 1-phase 100/110V 50/60Hz
Mold Size Φ25 or Φ32 or Φ38 or Φ40(mm)
Heater 1-phase 110V 400W
Temperature Control Digital setting indicator
Molding Timer Digital setting from 0 to 59 minutes 59 seconds
Standard Mounting Time 6 to 8 minutes(Digital setting)
Power Consumption 400W
Outer Dimensions(mm) 285W×500D×585H
Paint Color N401
Weight Approx. 28kg

Standard Accessories (provided in all models)

・Gloves 1 pair
・Funnel, spoon, flat-blade screwdriver 1 each
・Silicon spray 1 can
・Phenolic resin black (700g) 1 can

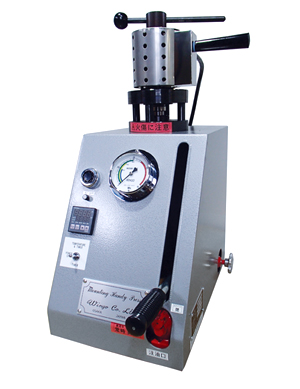

product photo


Please designate the mold size from among the four standard types.
In case of exchange to a mold of different size, please inquire because there may be parts in common and parts that differ.
The mold sizes are slightly smaller than inch sizes in consideration of the holder setting of the specimen polisher.
Approximately 40 specimens of φ32×25t(mm) size can be mounted with 1kg of the phenolic resin.
See the page on mounting consumables and coolers in regard to the mounting resins and coolers.
