Home > Products > Semi-Automatic Press Model P-5000

Hot Mounting Presses (Hot Pressing Models)

Semi-Automatic Press Model P-5000

Pressing and gas venting are performed by push-button operations.

Product Specifications

Power Supply 1-phase 100/110V 50/60Hz
Mold Size Φ25 or Φ32 or Φ38 or Φ40(mm)
Heater 1-phase 110V 400W
Temperature Control Digital setting indicator
Standard Mounting Time 6 to 8 minutes(Digital setting)
Power Consumption Motor 430W (60Hz)
Heater 400W
Outer Dimensions(mm) 385W×390D×555H
Paint Color N401
Weight Approx. 50kg

Standard Accessories (provided in all models)

・Gloves 1 pair
・Funnel, spoon, flat-blade screwdriver 1 each
・Silicon spray 1 can
・Phenolic resin black (700g) 1 can

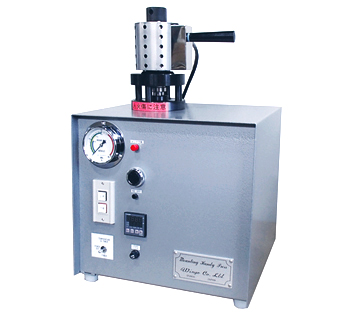

product photo


Please designate the mold size from among the four standard types.
In case of exchange to a mold of different size, please inquire because there may be parts in common and parts that differ.
The mold sizes are slightly smaller than inch sizes in consideration of the holder setting of the specimen polisher.
Approximately 40 specimens of 32φ × 25t (mm) size can be mounted with 1kg of the phenolic resin.
See the page on mounting consumables and coolers in regard to the mounting resins and coolers.
