Specimen polishers

Applicable to various materials ? from metal samples to teeth, bones, plant materials, rocks, ceramics, semiconductors, and high-tech materials.

Simple polisher Models L-6050 Series

Compact, lightweight, variable-speed tabletop polishers for performing grinding to polishing (manual-only).

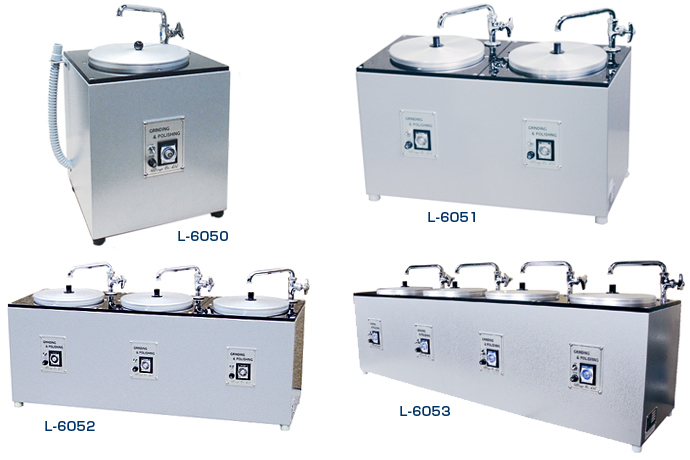

product photo

Simple polisher Specifications

Model Product Rotation speed Motor output Outer dimensions(mm) Weight
L-6050 Single-axis simple model 0 to 600min-1 1-phase 100V・90W
(per axis)
375W×375D×510H Approx. 19kg
L-6051 Two-axis simple model 670W×355D×510H Approx. 34kg
L-6052 Three-axis simple model 1000W×355D×510H Approx. 51kg
L-6053 Four-axis simple model 1335H×355D×510H Approx. 66kg
Power supply: 1-phase 100/110V 50/60Hz Water supply 1/2” Water drain 1”
product photo contact

L-6050 Series Standard Accessories

・200φ PVC disk/with fluororesin(PTFE) coating (per axis) 1 pc.
・Dust-proof cover (per axis) 1 pc.
・Water supply hose (12mmφ × 3m), water drain hose, joint 1 set

Optional Items

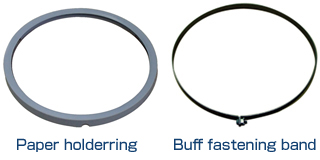

・200φ paper holder ring (for adhesive-free applications)
・200φ buff fastening band (for adhesive-free applications)
