Home > Products > Motorized Press Model P-4001

Hot Mounting Presses (Hot Pressing Models)

Motorized Press Model P-4001

A power hydraulic press enables specimen mounting to be performed simply by push-button operations. A gas venting process is incorporated to prevent specimen cracking and scattering.

Product Specifications

Power Supply 1-phase 100/110V 50/60Hz
Mold Size Φ25 or Φ32 or Φ38 or Φ40(mm)
Heater 1-phase 110V 400W
Temperature Control Digital setting indicator
Standard Mounting Time 7 to 10 minutes(Digital setting)
Power Consumption Motor 550W (800VA at 60Hz)
Heater 400W
Control 55VA
Outer Dimensions(mm) 570W×460D×570H
Paint Color N401
Weight Approx. 85kg

Standard Accessories (provided in all models)

・Gloves 1 pair
・Funnel, spoon, flat-blade screwdriver 1 each
・Silicon spray 1 can
・Phenolic resin black (700g) 1 can

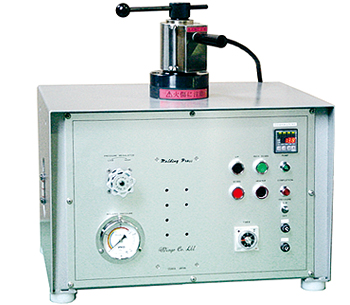

product photo


Please designate the mold size from among the four standard types.
In case of exchange to a mold of different size, please inquire because there may be parts in common and parts that differ.
The mold sizes are slightly smaller than inch sizes in consideration of the holder setting of the specimen polisher.
Approximately 40 specimens of 32φ×25t(mm) size can be mounted with 1kg of the phenolic resin.
See the page on mounting consumables and coolers in regard to the mounting resins and coolers.
