Automatic polisher

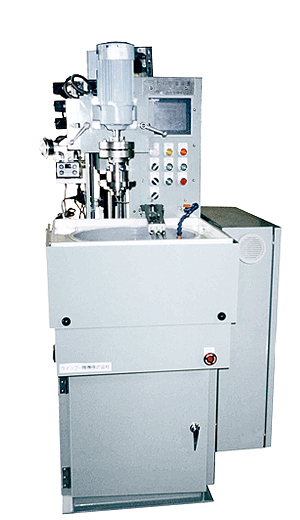

Automatic Finishing polisher Model FAS-300
High-performance automatic polisher adapted to various specimens. Highly reproducible preparation work is enabled by control of polishing times controlled by a touch panel and supply control of a diamond liquid and a lubricant liquid.
■Specifications
| Power supply | 3-phase 200/220V 50/60Hz |
|---|---|
| Air | 0.6MPa |
| Water | 20N |
| Polishing disk motor | 3-phase 200V 1.5kW 4P |
|---|---|
| Disk rotation speed | 150min-1 |
| Polishing disk diameter | Φ300 |
| Specimen holder rotating motor |
3-phase 200V 0.4kW with speed reducer |
| Specimen holder rotation speed | 150min-1 |
| Outer dimensions(mm) | W520×D560×H1420 |
| Cutting water | With circulating device |
| Polishing channel patterns |
0 to 9 (10CH) |
| Polishing process | 9µ, 6µ, 3µ, 1µ (4 processes) |
| Polishing stages | Initial polishing, main polishing, final polishing (3 stages) |
| Polishing method | Diamond or paper |
| Polishing pressure setting | 50 to 700KPa (Regulator adjustment range: 100 to 400KPa) |
| Polishing time setting | 1 to 999S |
| Polishing liquid supply cycle setting |
1 to 99.9S |
