Specimen polishers

Wide-use polishers L-6500 Series

Variable-speed, manual-only polishers with a low center of gravity for wide use.

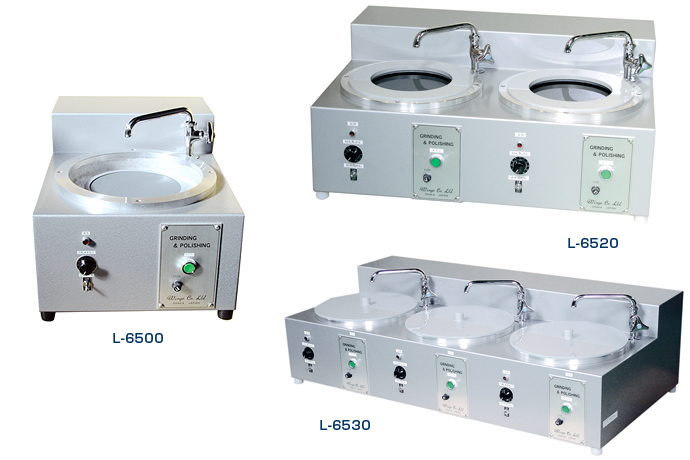

product photo

Wide-use polisher Specifications

Model Product Rotation speed Motor output Outer dimensions(mm) Weight
L-6500 Single-axis wide-use model 0 to 600min-1 200W Inverter control
(per axis)
380W×580D×362H Approx. 33kg
L-6520 Two-axis wide-use model 750W×580D×362H Approx. 68kg
L-6530 Three-axis wide-use model 1120W×580D×362H Approx. 102kg
Power supply: 1-phase 100/110V 50/60Hz (standard), 1-phase·3-phase 200/220V, Also compatible with 50/60Hz. Water supply 1/2” Water drain 3/4”
product photo contact

L-6500 Series Standard Accessories

・200φ PVC disk/with fluororesin(PTFE) coating (per axis) 1 pc.

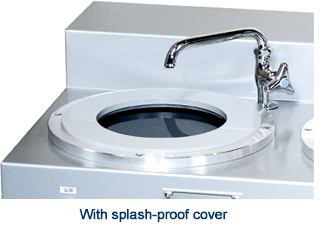

・Splash-proof cover (per axis) 1 pc.
・ Dust-proof cover (per axis) 1 pc.
・Water supply hose, water drain hose, joint 1 set

Optional Items

・200φ and 225φ paper holder rings (for adhesive-free applications)
・200φ and 225φ buff fastening bands (for adhesive-free applications)
・225φ PVC disk
・225φ splash-proof cover
・225φ dust-proof cover
